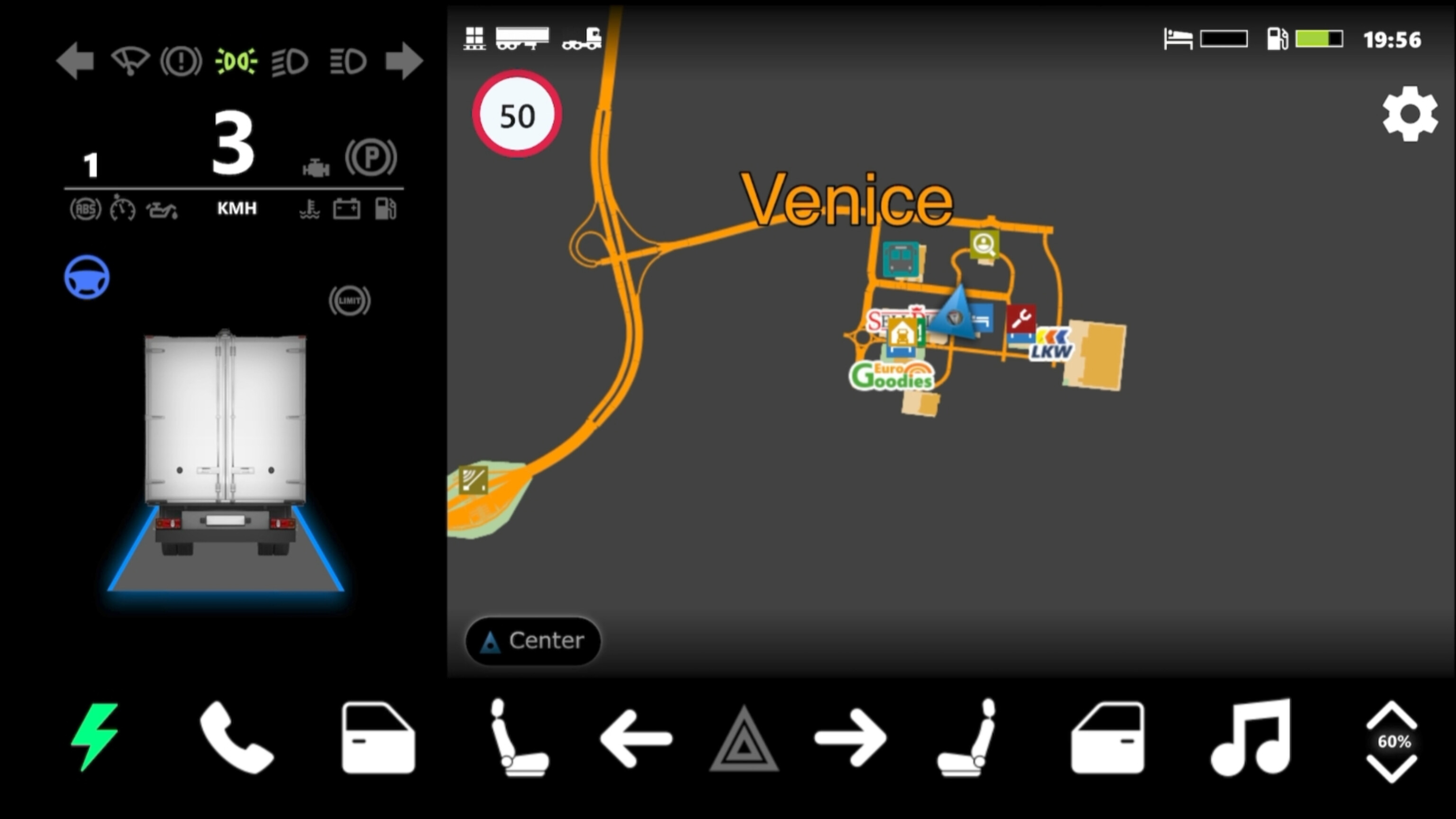

ETS2 Dashboard SIMHUB - Tesla Dashboard Like Interface

It looks great! Well done!

The whole thing is fabulous, and I particularly like the rear truck view with the brake lights on it!

@nigeuk Thanks.... 😀

Do you have any idea about the ETS2 Map not showing up on the dashboard. Now a days users/I face this issue. Do you have any alternative solution for this? 🤔

@techchetta No, sorry. I’ve avoided using maps in my dash because it can get very tricky with map mods and other issues.

@nigeuk Ok. Thanks ✌🏻

It is not working for me! 🙁
For example, I am pressing the alarm button and the passenger's window is going down, almost all buttons get volume up/down etc. I have tried displaying the dashboard both on tablet and in computer screen. What could be the issue?

@1nv1nc1ble_523

I'm almost sure the binded (simulated) keys in the dash are not the same as your binded keys ingame.

To make sure everything is working correct you have to make them simmilair.

Tricky part is, you have to know what keys are simulated behind the buttons. Maybe the dashmaker Techchetta can give you a list?

I had a look into the dash, and found for your example:

Alarmbutton is 'End'

Right window up is 'Numpad 9'

Right window down is 'Numpad 6'

etc etc etc

If i have some time, i can look into the dash and make a list of the simulated buttons in the dash if you want. Or maybe Techchetta responds

@smiddyy thank you so much for your response! The truth is that I don't want to change my setup. I am playing the game with a gamepad (no worries, I have no problem) and due to using modifier keys to multiply the assigned keys usage I really can't change anything. So, another solution must be found.

@1nv1nc1ble_523 (srry, my English isn't great 😉 )

The only other solution is to edit the simulated keys in the dash itself i think. I can help you with that if you want. But if the dashmaker don't mind. It's not very nice and neat to edit his dash i think. But yeah, if needed only for the simulated keys. I do not think there's a problem

I'm also working on my own ETS/ATS dash. Wich i can personalise for you if you want. Let me know, no problem. PM me on discord on Smiddy#5569

@smiddyy what info would you need to edit them (if creator permits it)? My assigned keys for each action?

It's pretty easy,

(You can make a backup to experiment in that dash, click in the dashstudio on a dash and duplicate,

or simply download it again)

- click in the dash studio on 'edit dashboard'

- in the right upper corner you see the layers. (works the same as photoshop)

- a layer can be a dial, button, text, image, map etc etc

- Layers can be placed in maps to organize everything and depends on wich layer has to cover another layer

to be placed above or under another layer

- Search for the button layers, click on the button layer you want to edit,

scroll down in the window in the down right of your screen and search for 'Simulated key'

- Here you can bind your prefered key for that button.

When finished, Click File, Save

Hope this will help, in my best English haha.

Happy new year all! 🍻 🥂

Happy new year, my friend! Thank you very much for the instructions. It is working but I have a question... These are the keyboard mappings. What do I do with the assigned keys on my gamepad? Combinations too.

@1nv1nc1ble_523

These you can bind too. Make sure you set the 'Controllers input' on

in simhub, add/remove features on the bottom left of the mainscreen
