1,3" OLED Display - weird readout

4 Posts
3 Users
0 Reactions
1,069 Views
(@mightymuelo)
Active Member
Joined: 3 years ago
Posts: 5
Topic starter

Hello

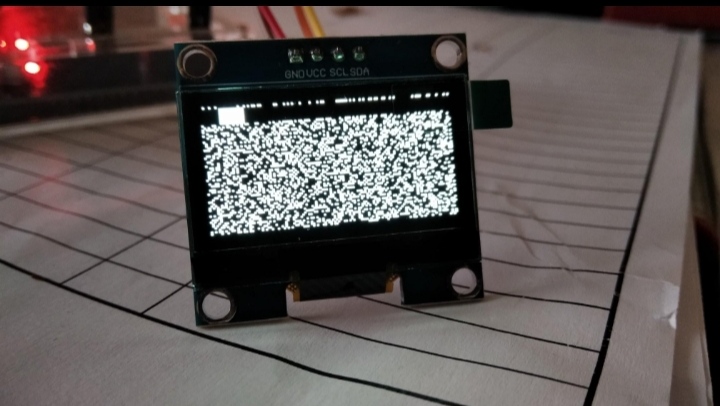

I tried to connect a 1,3" OLED I2C Display with a Arduino Nano to SimHub. But the Display only shows a weird output. See Photo.

Is there a way to make it work?



Quote
(@hyokgi)
New Member
Joined: 10 months ago
Posts: 1


I use 1.3" OLED with SH1106 driver and 1.5" CH1116 driver.
you just copy your oled driver library to simhub library folder and replace some text in SHGLCD_I2COLED.h



ReplyQuote
(@haktas)
Active Member
Joined: 1 year ago
Posts: 5


@hyokgi i need help with this. i have the same problem. i try to use a 1.3 inch oled screen on the esp32 card but i fail. can you show me a code example.



ReplyQuote
(@haktas)
Active Member
Joined: 1 year ago
Posts: 5


@hyokgi i need help with this. i have the same problem. i try to use a 1.3 inch oled screen on the esp32 card but i fail. can you show me a code example.



ReplyQuote
