Hi!

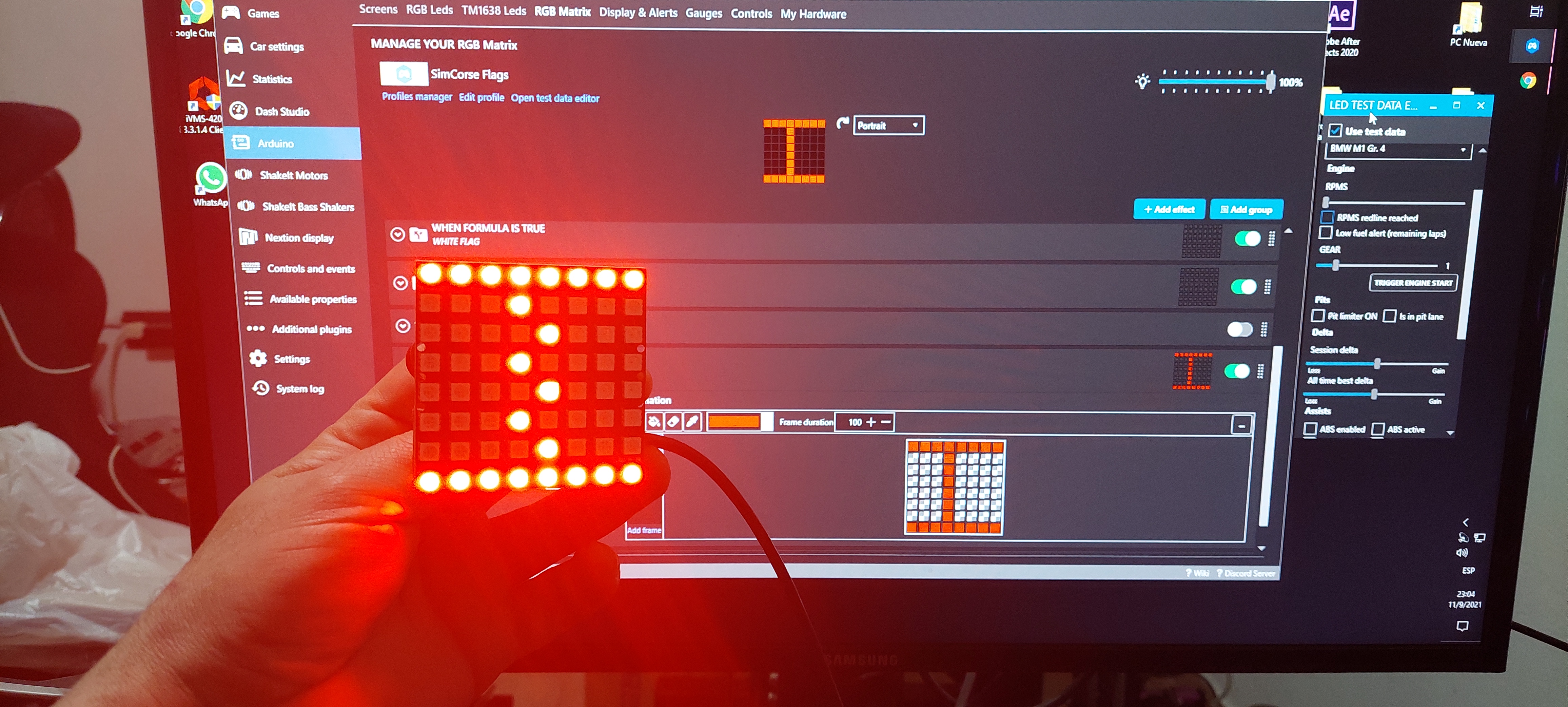

I have problems with the 8x8 WS2812B matrix again
It does not respect the order of LED lighting
I have the latest update of SimHub 7.4.7
I already had this problem a while ago and it was fixed in a SimHub update
https://www.simhubdash.com/community-2/simhub-support/ws2812b-matrix-8x8-rgb-problems/
I hope they can solve it soon!
Greetings!
is the option for serpentine layout matrix still selected after you updated?
Its under the "Arduino->My Hardware-> open arduino setup tool" section. When you scroll down to the "WS2812B RGB 8x8 matrix" and enable it one of the options is for the serpentine matrix layout(and reverse). I can confirm my 8x8 was doing what yours did and I reloaded the sketch to my arduino and that resolved it using latest build as well.
What a fool!
I had not realized that I was there
Before there was no such option, can it be?
I loaded the profile that I had saved and I did not realize that there was that option
The last time I had that problem they had solved it in an update
Thank you!
You are very kind
Excuse the Google translation
